Gryfair.cz GRYF magazine News December Shark's development
December Shark's development Print E-mail
Written by Jaroslav Dostál
Thursday, 01 January 2009 01:00

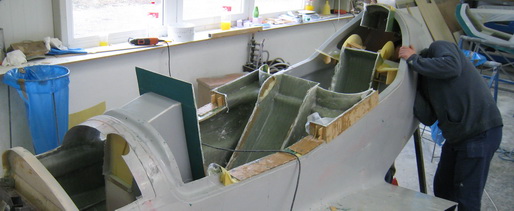

During December 2008 SHARK development continued with finishing of CNC produced negative wing molds, canopy frame and inside structure of fuselage preparing â?? mainly missed interior molds.

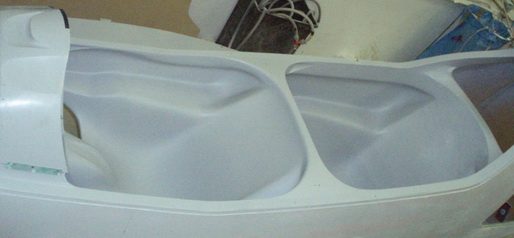

First of all, interior designer Peťo Zelman finished interior shapes ...


â?Ś after that there were defined divided levels...

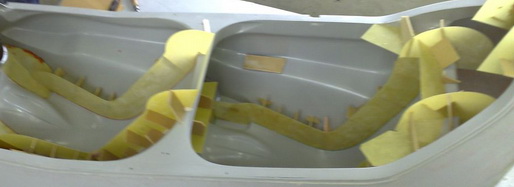

â?Śand created its separated negative molds ...


There is possible to recognize from baggage compartment molds creating â?Ś there will be good to append some window into baggage compartment door ...

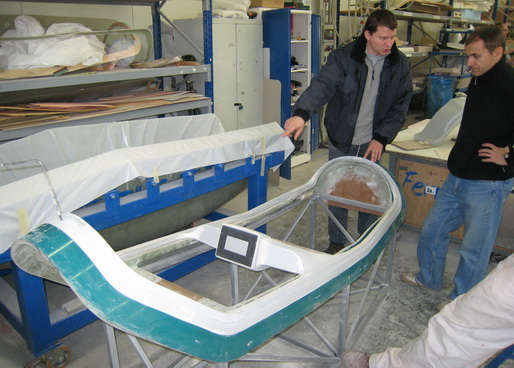

Canopy frame was created by Erich Ostrčil under supervision of project manager Bohuš Závodný and COMP-LET owner Vlado Pekár ...

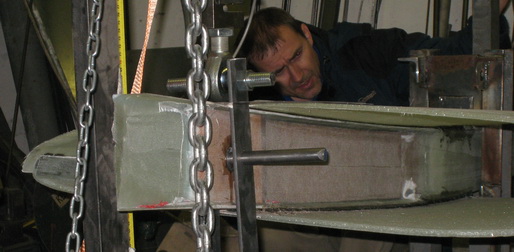

beside of all that works COMP-LET made some detail strength-proofs of technological. Wing beam example â?Ś to be sure during final wing assembly. Wing sample survived loads adequate 12g.
